Diagnostic Connectors

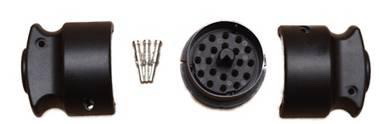

BMW 20 Pin Round Diagnostic Connectors
Description
20 pin diagnostic connector for BMW. The design is based on a contact housing with removable pins. These pins are tin plated, and can either be soldered or crimped. Two shell halves and a strain relief complete the design. Made of enforced nylon, these connectors are durable and offer a perfect fit.
Applicable for all BMW car models from 1989 through 2000 (and some models up to 2002). Cars from 1996 through the later years do have a OBDII connector, but do not provide full diagnostic access - only the ECU is accessible via the OBDII port.
Each connector Kit Includes:
• Connector Housing (1) - material: PBT
• Shells (2) - material: PA66+GF15%
• Contact Pins (4) : Brass-Tin platedl
• Strain Relief 8 mm (1) ABS
• Fasteners (4)
Country of Origin: TAIWAN
Specification
Connector Material: PBT
Contact Plating: Tin
Shell Material: Nylon
Shell Color: Black
RoHS Compliant: Yes
Weight: 70.0 gr
Country of Origin: TAIWAN
PORSCHE 19 Pin Round Diagnostic Connectors
Description
19 pin diagnostic connector for Porsche. The design is based on a contact housing with removable pins. These pins are tin plated, and can either be soldered or crimped. Two shell halves and a strain relief complete the design. Made of enforced nylon, these connectors are durable and offer a perfect fit.
Applicable for all Porsche car models from 1989 through 2000 (and some models up to 2002). Cars from 1996 through the later years do have a OBDII connector, but do not provide full diagnostic access - only the ECU is accessible via the OBDII port.
Each connector Kit Includes:
• Connector Housing (1) - material: PBT
• Shells (2) - material: PA66+GF15%
• Contact Pins (4) : Brass-Tin platedl
• Strain Relief 8 mm (1) ABS
• Fasteners (4)
Country of Origin: TAIWAN
Specification
Connector Material: PBT
Contact Plating: Tin
Shell Material: Nylon
Shell Color: Black
RoHS Compliant: Yes
Weight: 70.0 gr
Country of Origin: TAIWAN
Tin Plated Contact Pin
Description
Tin plated contacts for use with the round Porsche and BMW diagnostic connectors. Sold in multiples of 80.
Specification
Contact Plating: Tin
Weight: 1.4 gr
RoHS Compliant: Yes
Country of Origin: TAIWAN

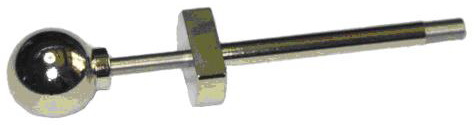

Pin Removal Tool
Description
Extraction of damaged or mis-located contact pins with this tool is a breeze. Specifically designed for the contact pins used with the "legacy" BMW and Porsche diagnostic connectors. Precision machined, and nickel plated.
Specification
Weight: 25.0 gr
RoHS Compliant: Yes
Country of Origin: TAIWAN

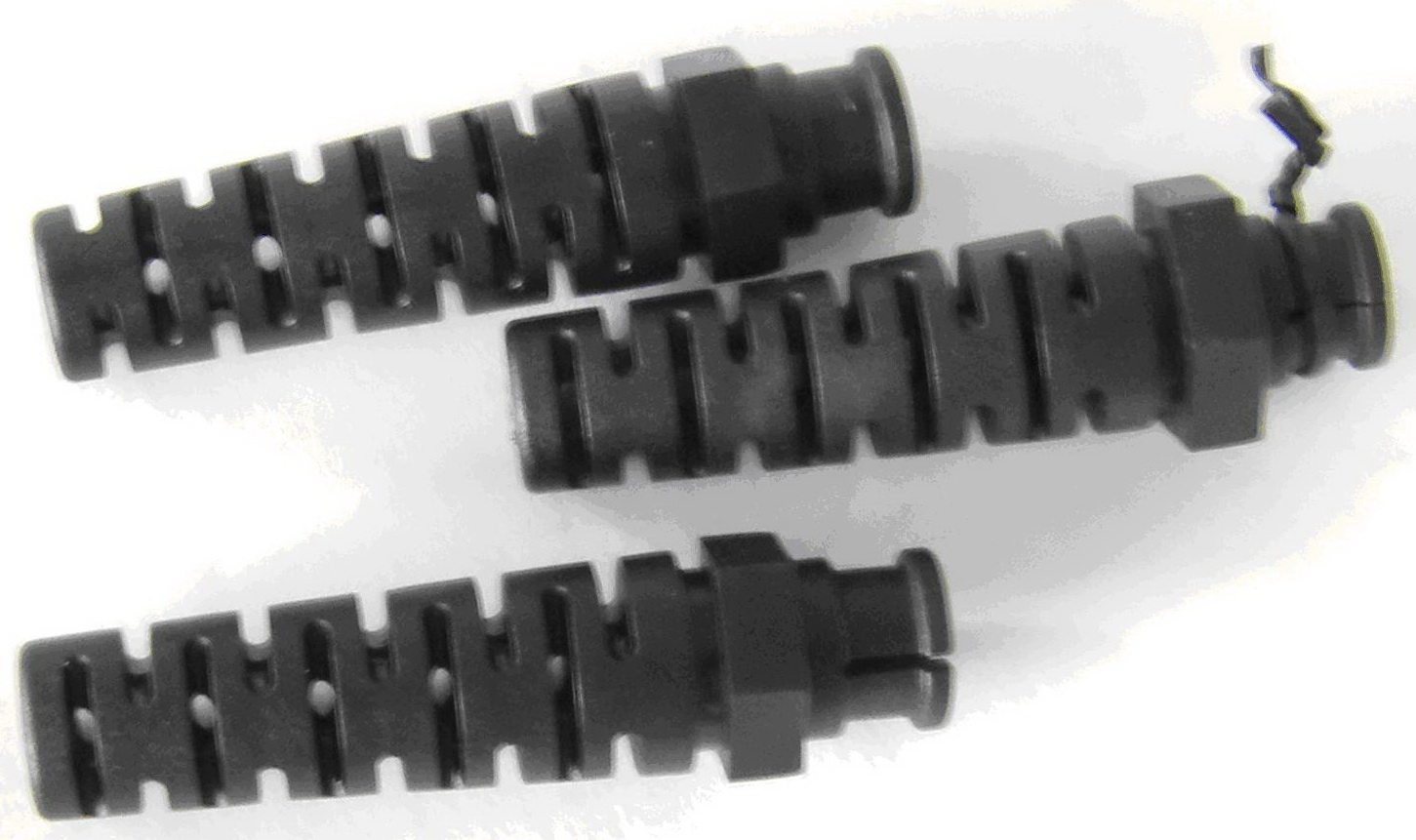

Strain Relief
Description
Specification
